Product Finder

For more than 50 years we have been in the business of producing and designing solenoid valves for many different applications. Over these many years a vast number of standard solenoid valves have been designed.



To help you search the long list we have created this Product Finder to make it easier for you to find Your Valve.

If you cannot find the a suitable solenoid valve for your application, please contact us. We look forward to your request.

Legend

  • *Kv : Flow Coefficient in l/min of water at ∆p of 1 bar
  • Seal material= NBR: Nitrile Butadiene Rubber, FKM: Fluoroelastomers, FFKM: Fluoroelastomers, EPDM: Ethylene Propylene Diene Monomer, MVQ: Silicone Rubber
  • A2M608.BB0.066

    • Valve Function 2/2 NC
    • Orifice [mm]: 0.8
    • Flow Rate Kv* 0.28
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 10
    • Voltage 12VDC
    • Coil Size [mm]: 15
    • Manual Override None

    Request Data Sheet

    Request 3D STP

  • A2M608.BB0.071

    • Valve Function 2/2 NC
    • Orifice [mm]: 0.8
    • Flow Rate Kv* 0.28
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 10
    • Voltage 24VDC
    • Coil Size [mm]: 15
    • Manual Override None

    Request Data Sheet

    Request 3D STP

  • A2M608.BB5.066

    • Valve Function 2/2 NC
    • Orifice [mm]: 0.8
    • Flow Rate Kv* 0.28
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 10
    • Voltage 12VDC
    • Coil Size [mm]: 15
    • Manual Override Bi-stable Plastic Lever

    Request Data Sheet

    Request 3D STP

  • A2M608.BB5.071

    • Valve Function 2/2 NC
    • Orifice [mm]: 0.8
    • Flow Rate Kv* 0.28
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 10
    • Voltage 24VDC
    • Coil Size [mm]: 15
    • Manual Override Bi-stable Plastic Lever

    Request Data Sheet

    Request 3D STP

  • A2M612.BB0.066

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.2
    • Flow Rate Kv* 0.4
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 9
    • Voltage 12VDC
    • Coil Size [mm]: 15
    • Manual Override None

    Request Data Sheet

    Request 3D STP

  • A2M612.BB0.071

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.2
    • Flow Rate Kv* 0.4
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 9
    • Voltage 24VDC
    • Coil Size [mm]: 15
    • Manual Override None

    Request Data Sheet

    Request 3D STP

  • A2M612.BB5.066

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.2
    • Flow Rate Kv* 0.4
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 9
    • Voltage 12VDC
    • Coil Size [mm]: 15
    • Manual Override Bi-stable Plastic Lever

    Request Data Sheet

    Request 3D STP

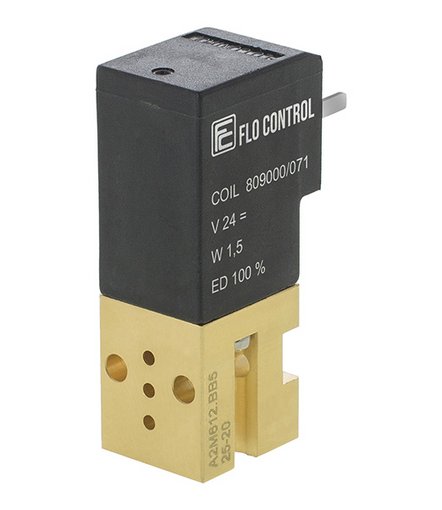

  • A2M612.BB5.071

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.2
    • Flow Rate Kv* 0.4
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 9
    • Voltage 24VDC
    • Coil Size [mm]: 15
    • Manual Override Bi-stable Plastic Lever

    Request Data Sheet

    Request 3D STP

  • A2M615.BB0.066

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.5
    • Flow Rate Kv* 0.55
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 5
    • Voltage 12VDC
    • Coil Size [mm]: 15
    • Manual Override None

    Request Data Sheet

    Request 3D STP

  • A2M615.BB0.071

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.5
    • Flow Rate Kv* 0.55
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 5
    • Voltage 24VDC
    • Coil Size [mm]: 15
    • Manual Override None

    Request Data Sheet

    Request 3D STP

  • A2M615.BB5.066

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.5
    • Flow Rate Kv* 0.55
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 5
    • Voltage 12VDC
    • Coil Size [mm]: 15
    • Manual Override Bi-stable Plastic Lever

    Request Data Sheet

    Request 3D STP

  • A2M615.BB5.071

    • Valve Function 2/2 NC
    • Orifice [mm]: 1.5
    • Flow Rate Kv* 0.55
    • Port Size SUB-BASE
    • Body Material BRASS
    • Tube Material -
    • Seal Material NBR
    • Max Operating Pressure [Bar] 5
    • Voltage 24VDC
    • Coil Size [mm]: 15
    • Manual Override Bi-stable Plastic Lever

    Request Data Sheet

    Request 3D STP
